ASME Shell and Tube Heat Exchanger 200m² 10MPa Design Pressure
| Lugar de origem | Jiangsu, China |
|---|---|
| Marca | sureway |
| Quantidade de ordem mínima | 1 |
Contacte-me para amostras e cupons grátis.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.
xDetalhes do produto
| Dimensão | 4500 1000 1500 | Volume | 1000 m3 |
|---|---|---|---|
| Material interno | Siliconcarbide/2205DuplexSteel Tubo/pfalineds/316L | Material externo | 304/Aço Linedppy |
| Pressão de projeto | 1-10MPa | Temperatura de trabalho | 196 - 300 ℃ |
| Peso | 2000 kg | Área da inversão térmica | 200 m2 |
| Material | Q345R/316L/TA2/304/PTEE | Tubos de troca de calor | Tubo composto de carboneto PPT/silício puro |
| Tipo de flange | Flange PP/304 Anel de reforço de aço inoxidável | Número de tubos | 2 viagens |
| Componentes principais | Vaso de pressão | Padrão de design | ASME |
| Padrões de equipamentos | ASME | ||
| Destacar | 200m² Shell and Tube Heat Exchanger,ASME Shell and Tube Heat Exchanger,10MPa Shell and Tube Heat Exchanger |
||
Descrição de produto
Shell and Tube Heat Exchanger
Product Specifications
| Attribute | Value |
|---|---|
| Design Pressure | 1-10 MPa |
| Working Temperature | 196°C - 300°C |
| Warranty | 1 Year |
| Weight | 2000 KG |
| Volume | 1000 m³ |
| Dimensions (L×W×H) | 4500 × 1000 × 1500 mm |
| Heat Exchange Area | 200 m² |
| Number of Tubes | 2 trips |
| Design Standard | ASME |
Key Features
- Enhanced heat exchange performance with 200m² heat exchange area
- Robust construction with Q345R/316L/TA2/304/PTEE materials
- Pressure resistance up to 10 MPa
- Precision temperature control with high-accuracy tubes
- Low maintenance design with modular structure
- Energy-efficient operation for cost savings
- Customizable design for various industrial applications
- ASME certified for safety and reliability

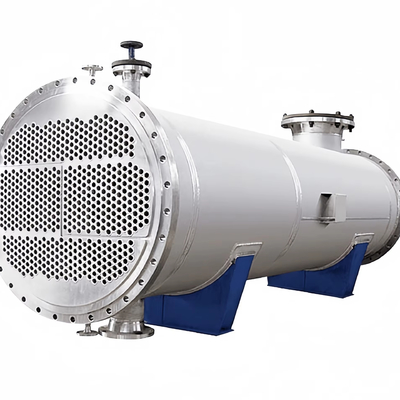

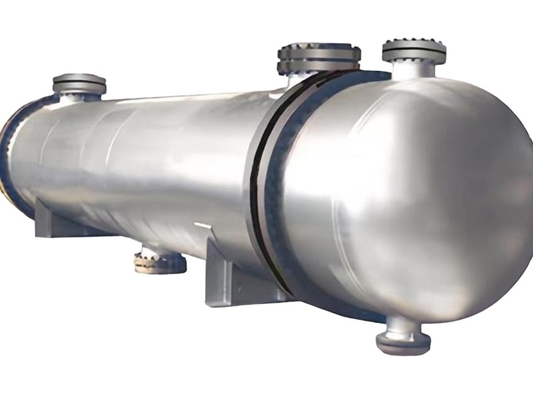

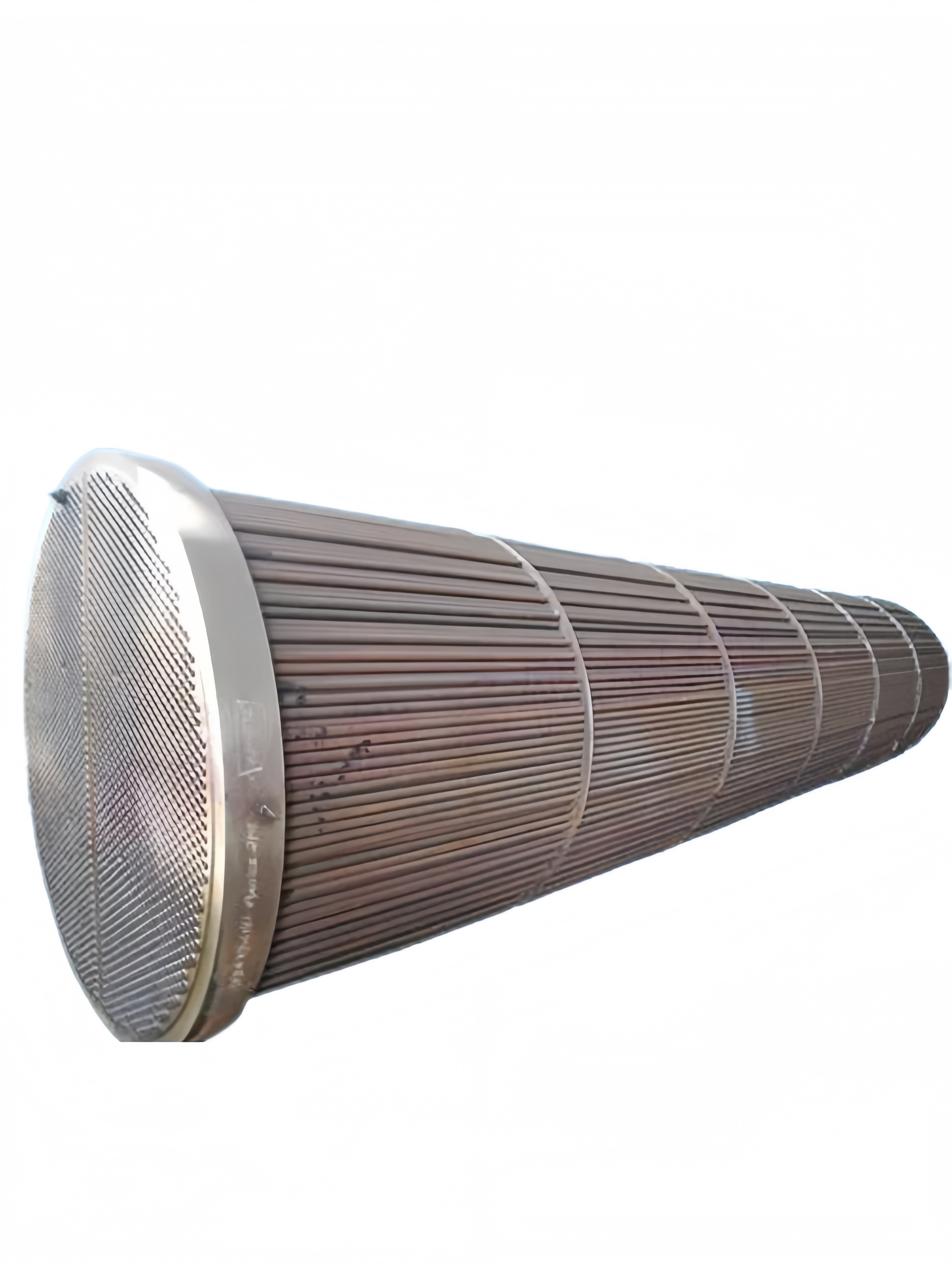

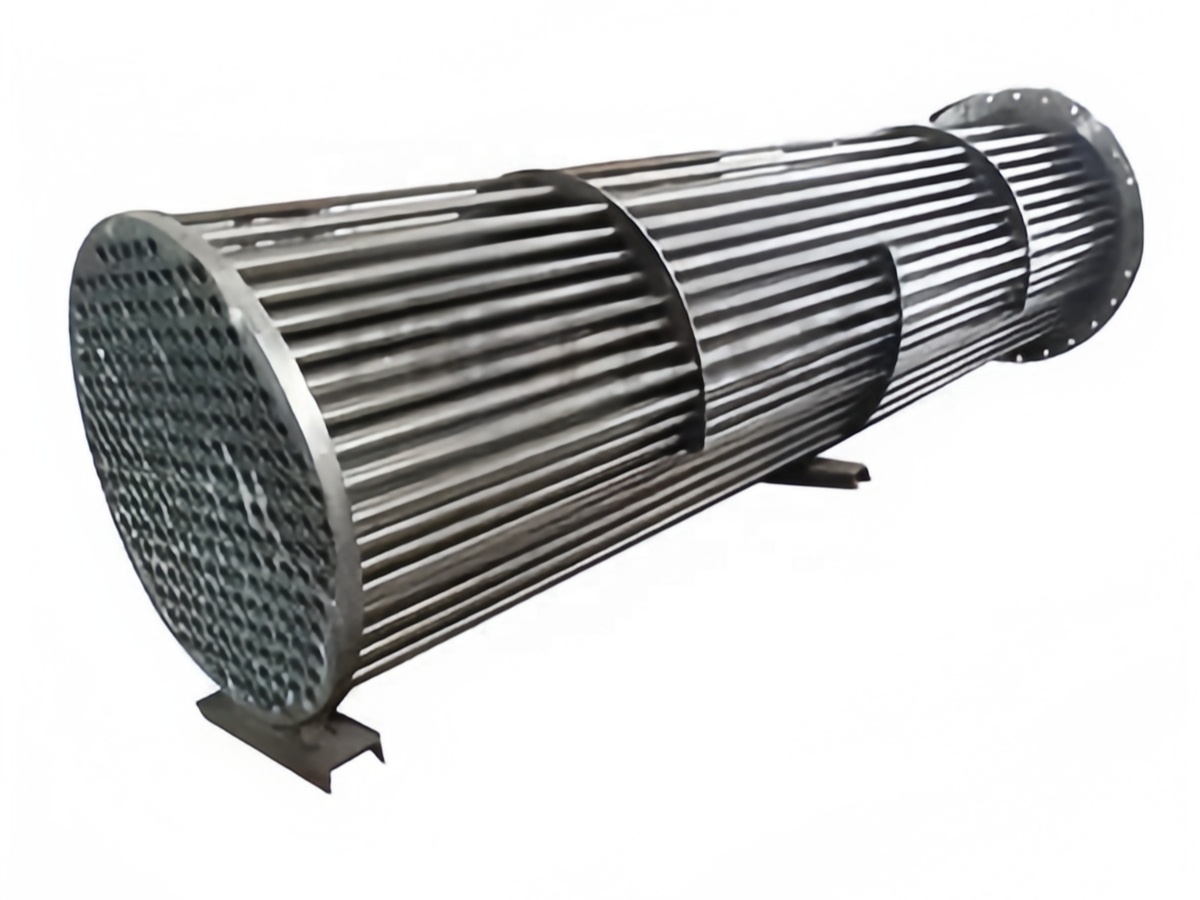

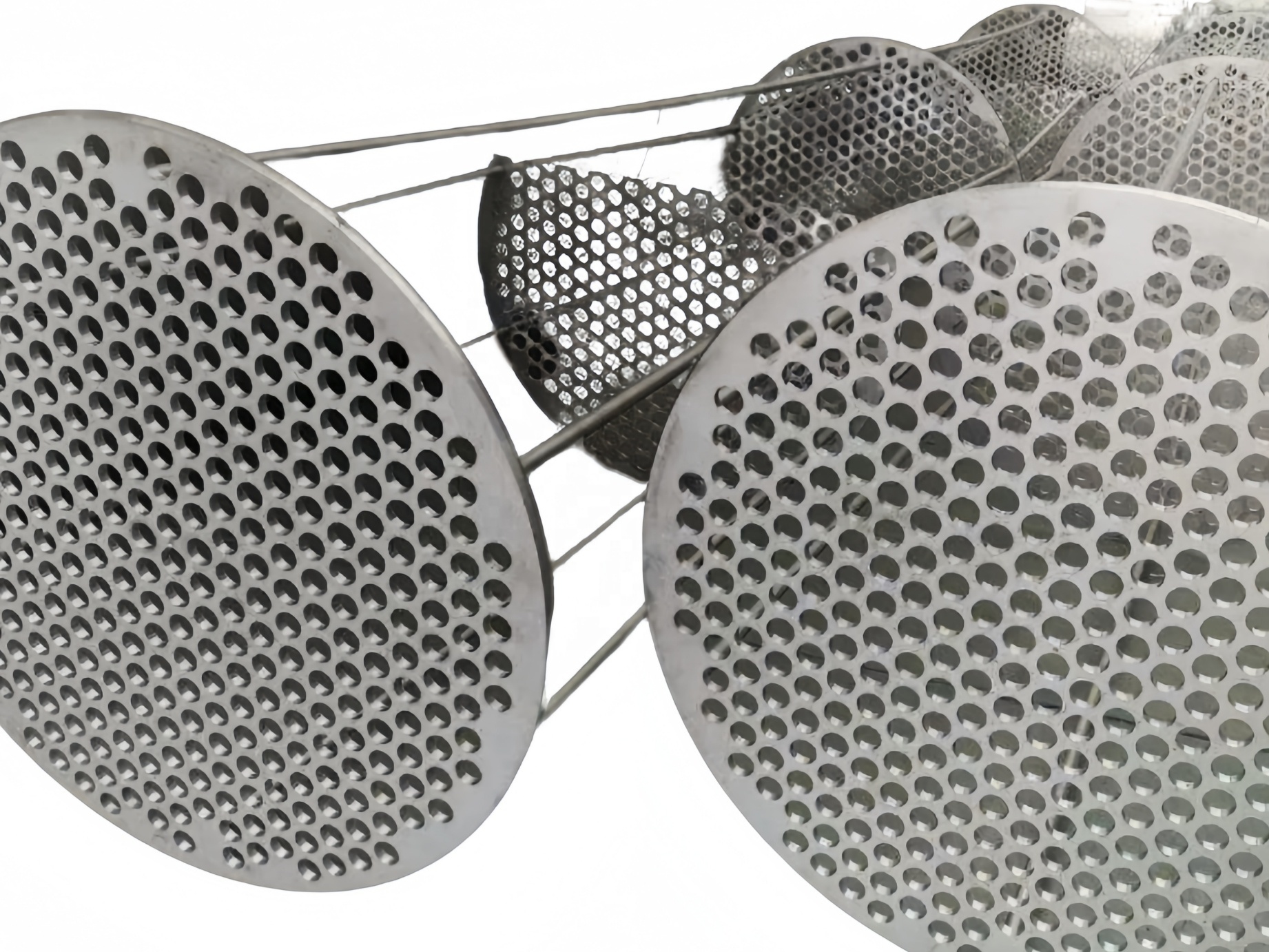

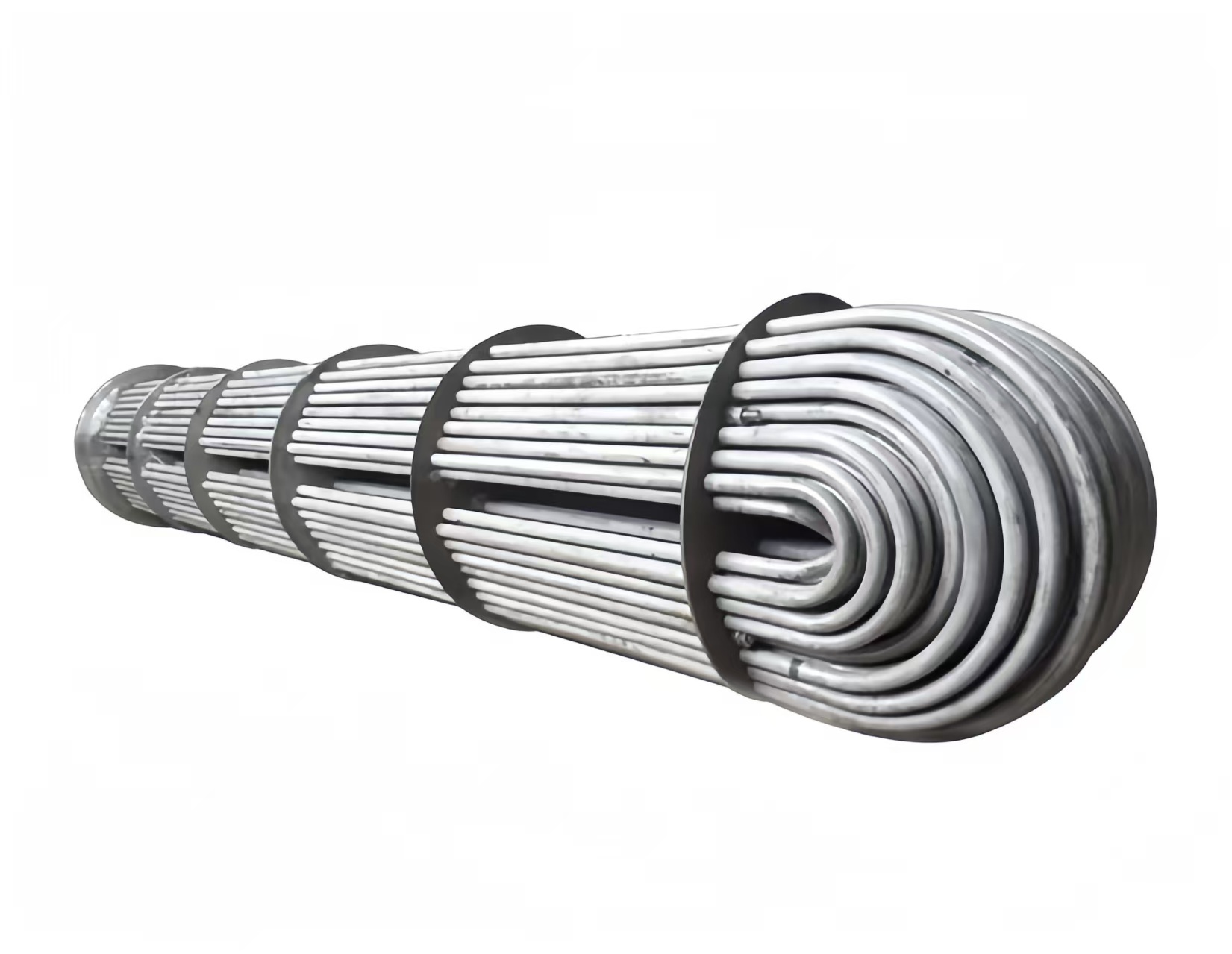

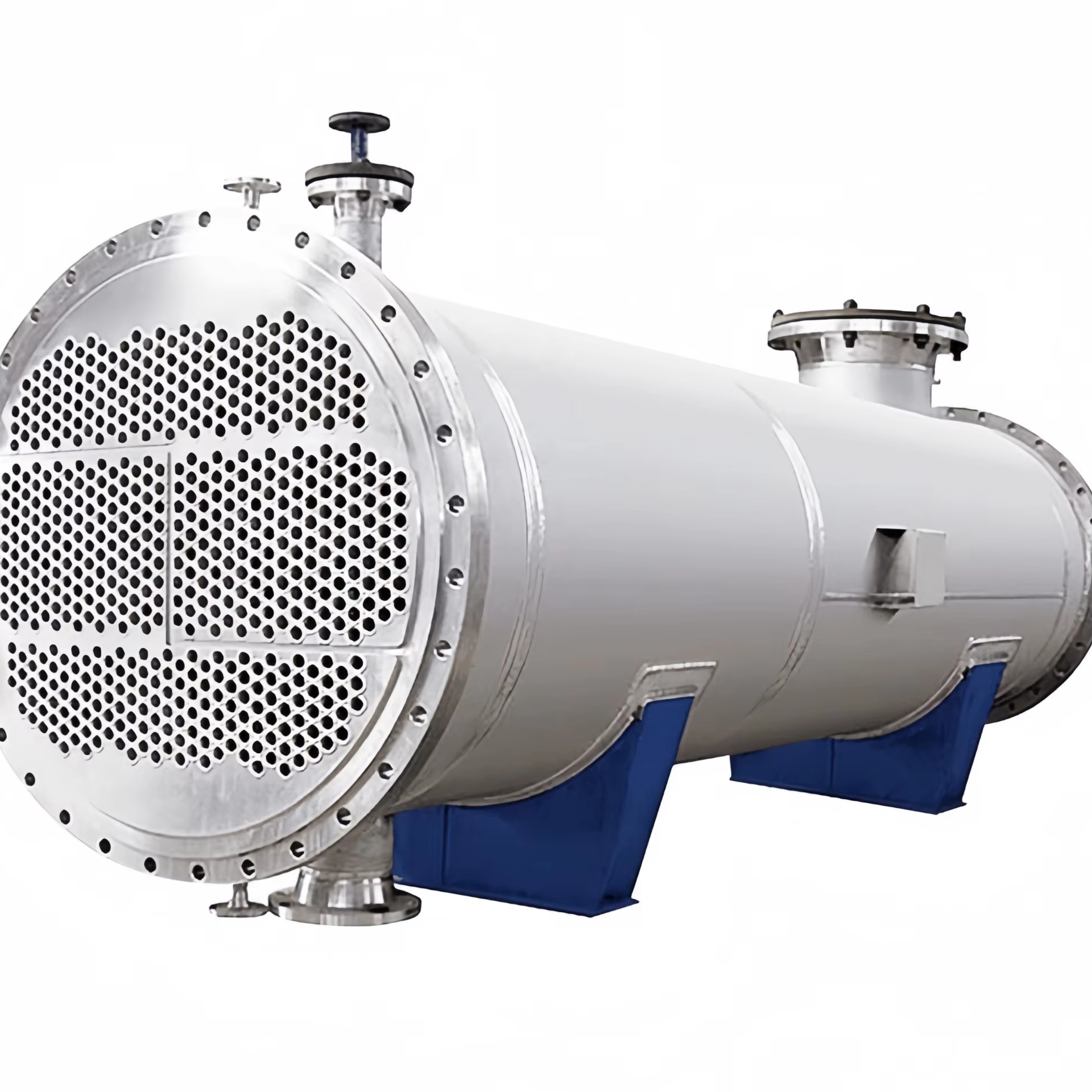

Product Images
Technical Specifications
| Component | Material |
|---|---|
| Inner Material | Silicon Carbide / 2205 Duplex Steel Pipe / PFA Lined / 316L |
| Outer Material | 304 / Steel Lined PPY |
| Heat Exchange Tube | Pure PPT / Silicon Carbide Composite Pipe |
| Flange | PP Flange / 304 Stainless Steel Reinforcement Ring |
Product Advantages
- High Efficiency: Optimized design for maximum heat transfer with minimal energy loss
- Durability: Corrosion-resistant materials ensure long service life
- Safety: Built to withstand high pressures with multiple safety features
- Versatility: Suitable for various industrial processes and temperature ranges
- Maintenance: Easy disassembly for cleaning and maintenance
Manufacturer Information
Shanghai Sureway Industrial Company Limited specializes in chemical engineering technology and equipment manufacturing. With over a decade of experience, we provide innovative solutions for chemical processing, gas separation, and industrial automation systems. Our expertise includes:
- LNG and CO2 plant equipment
- Sulfur-based chemical production technology
- Pressure vessels and heat exchangers
- Industrial automation systems
Frequently Asked Questions
Where are you located?
We are based in Shanghai, China, serving clients worldwide including Africa, Southeast Asia, Mid East, and North America.
How do you ensure product quality?
We conduct pre-production samples and final inspections before shipment, with video outgoing-inspection and machinery test reports provided.
What payment methods do you accept?
We accept T/T, L/C, Credit Card, PayPal, Western Union, and other major payment methods in USD, EUR, or CNY.
